AXA Made in Germany

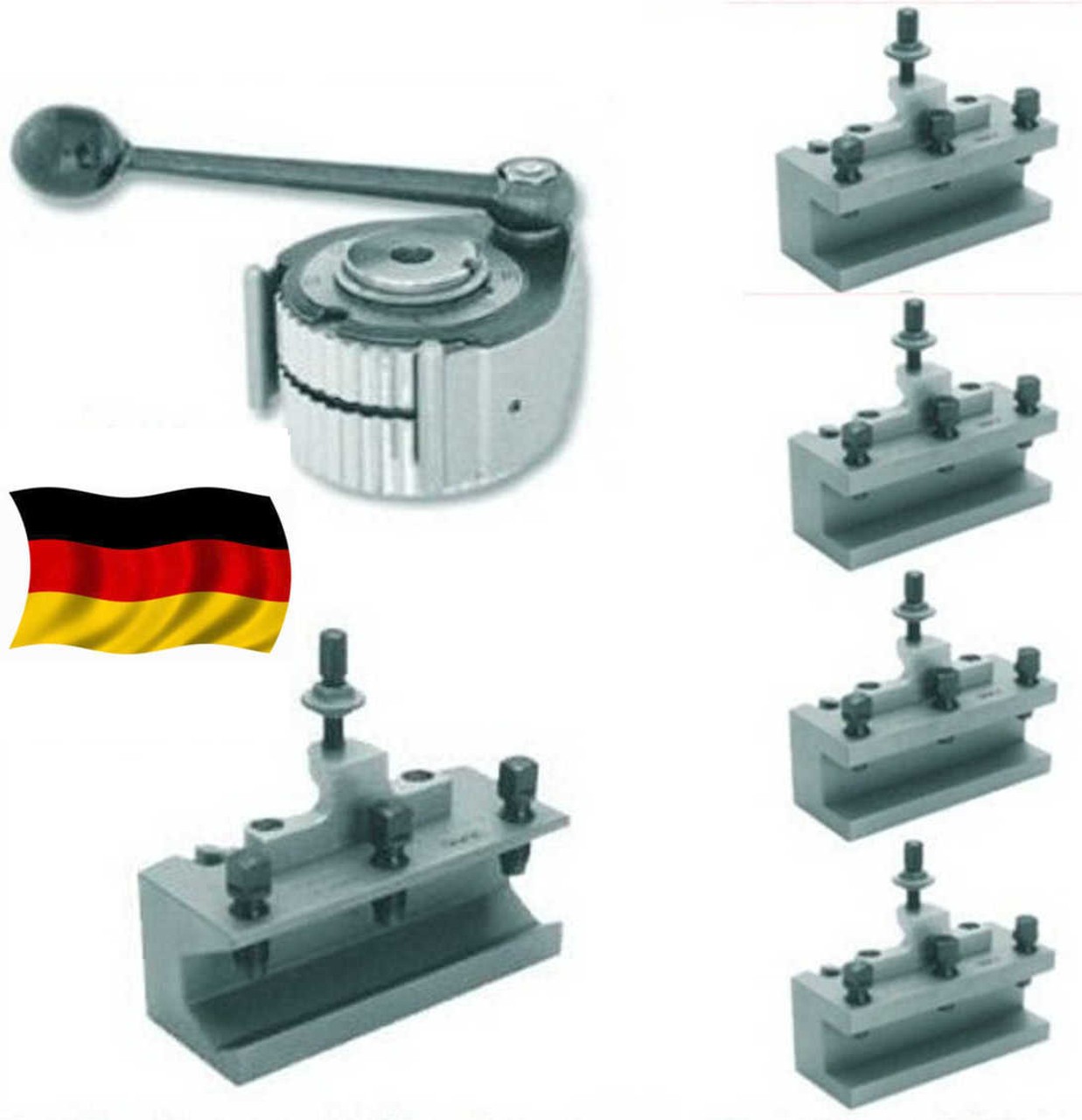

AXA quick-change steel holder set K22 (= Multifix B) => 1 lathe tool holder head + 4 torsion steel holders 120mm + 1 drill steel holder
Item number B_K22_Set2_120
EUR 866.95
*
Content
1 set
Delivery time approx. 2-3 working days
* Incl. VAT excl. Shipping
AXA quick-release steel holder set K22 (= Multifix size B)
consisting of:
- 1 steel bracket base head K22 (= MULTIFIX size B)
- 4 AXA quick-change lathe tool post D22/25/120 ( = MULTIFIX BD 25120)
(alternatively, D22/25/140 = MULTIFIX BD 25140 available at the same price on request) - 1 AXA quick-change drilling tool holder B22/30/130 (= MULTIFIX BH 30130)
- Supplied with 1 socket spanner and 1 clamping lever
Size "K22" or "B" is for machine drive power up to 6.6 KW and carriage width max. 150mm
Mounting hole of the lathe tool holder head: 32mm (on request up to 40mm for an extra charge)
- lathe tool holder head and steel holder with hardened, profile-ground teeth
- therefore 40 different angle positions of the holdersare possible
- Backlash-free and repeatable clamping of the interchangeable holders
- 0.01 mm repeat accuracy
- Simple height adjustment of the steel holders via knurled screw with lock nut
- with angle scale on the head
- Almost every standard lathecan be equipped with this quick-change toolholder
The technical data and dimensions with sketches for explanation can also be found in the photos
| Technical characteristic | Value |
|---|---|
| Item ID | 4287 |
| Condition | New |
| Age rating | No age restriction |
| Variation ID | K22_Set2_120 |
| Model | K22_Set2_120 |
| Manufacturer | AXA Made in Germany |
| Manufacturing country | Germany |
| Content | 1 set |
| Weight | 13750 g |
| Net weight | 13400 g |
| Dimensions | 250×200×200mm |
