AXA Made in Germany

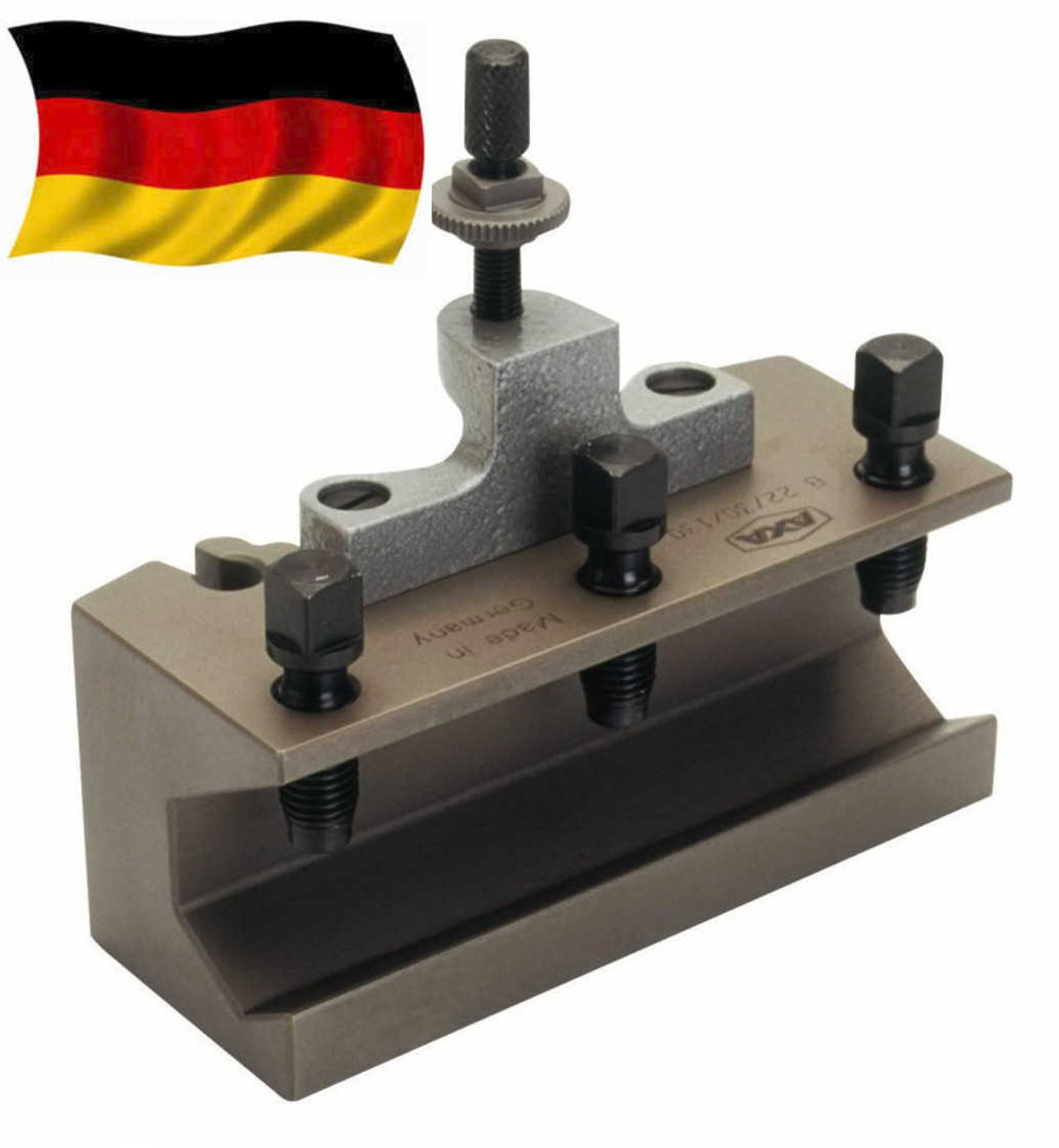

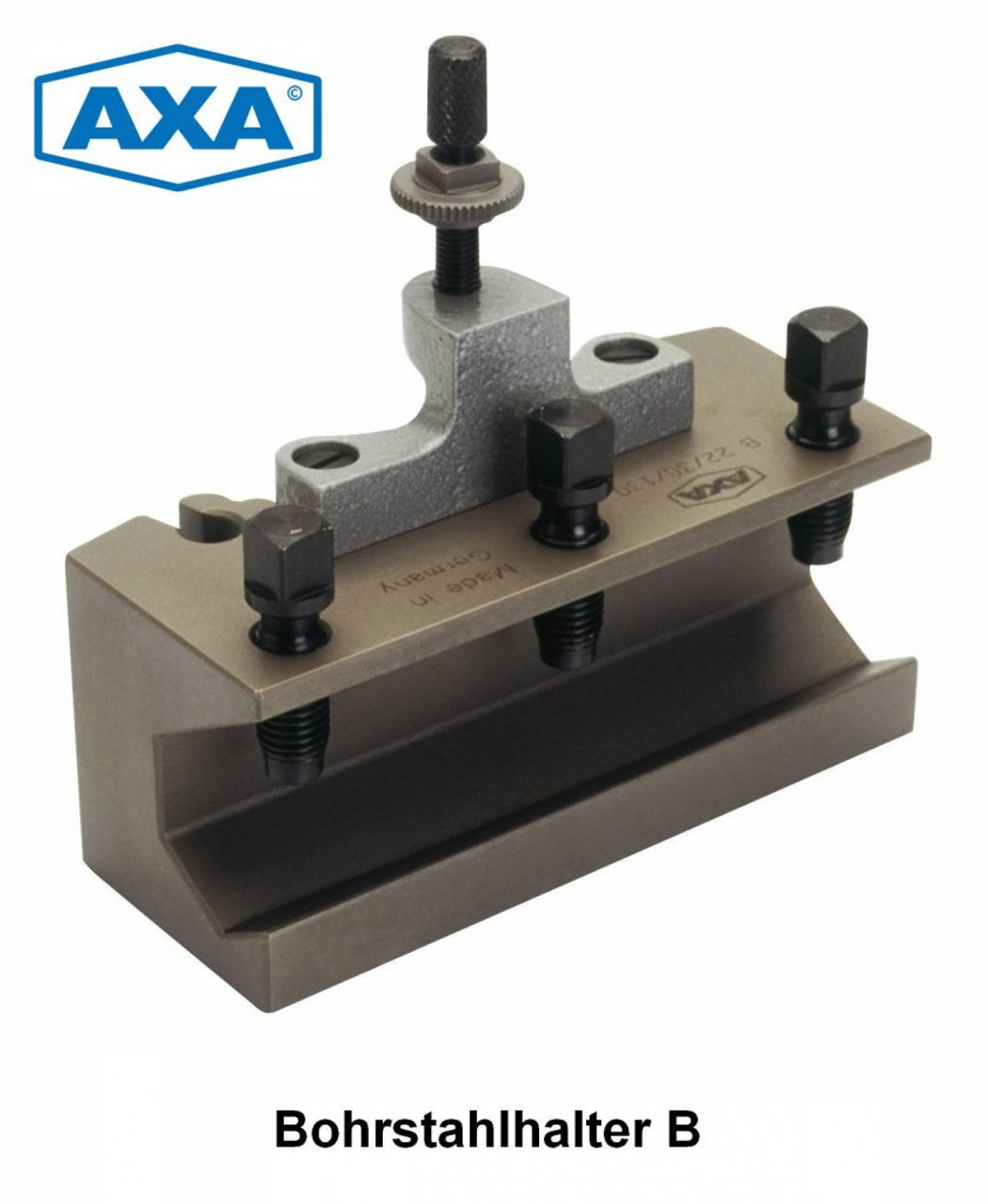

AXA quick-change drilling tool holder B22/32/130 MULTIFIX BH 32130 (up to max. D=32mm)
Item number B_B22/30/130
EUR 136.50
*
Content
1 piece
Delivery time approx. 2-3 working days
* Incl. VAT excl. Shipping
Quick-change drill steel holder B22/32/130 (=MULTIFIX BH 32130)
or B22/30/130 (=MULTIFIX BH 30130) (identical H2 or K22 depending on manufacturer)
ATTENTION: max. clamping diameter = 32mm
- Size "B" is for machine drive power up to 6.6 KW and carriage width max. 150mm
- Length of steel support ( l ) = 130mm
- max. diameter of the drill steel or drill bit ( d max ) = 32mm
- Can be used with insert prisms
- Backlash-free and repeatable clamping of the holder in the base body with 0.01 mm repeat accuracy
- Simple height adjustment of the steel holder (and thus the turning tool) via a knurled screw with lock nut
For further technical data, see article "lathe tool holder head size B"
| Technical characteristic | Value |
|---|---|
| Item ID | 1156 |
| Condition | New |
| Age rating | No age restriction |
| Variation ID | B22/32/130 |
| Model | B22/30/130 |
| Manufacturer | AXA Made in Germany |
| Manufacturing country | Germany |
| Content | 1 piece |
| Weight | 2050 g |
| Net weight | 2000 g |
| Dimensions | 130×60×100mm |
