AXA Made in Germany

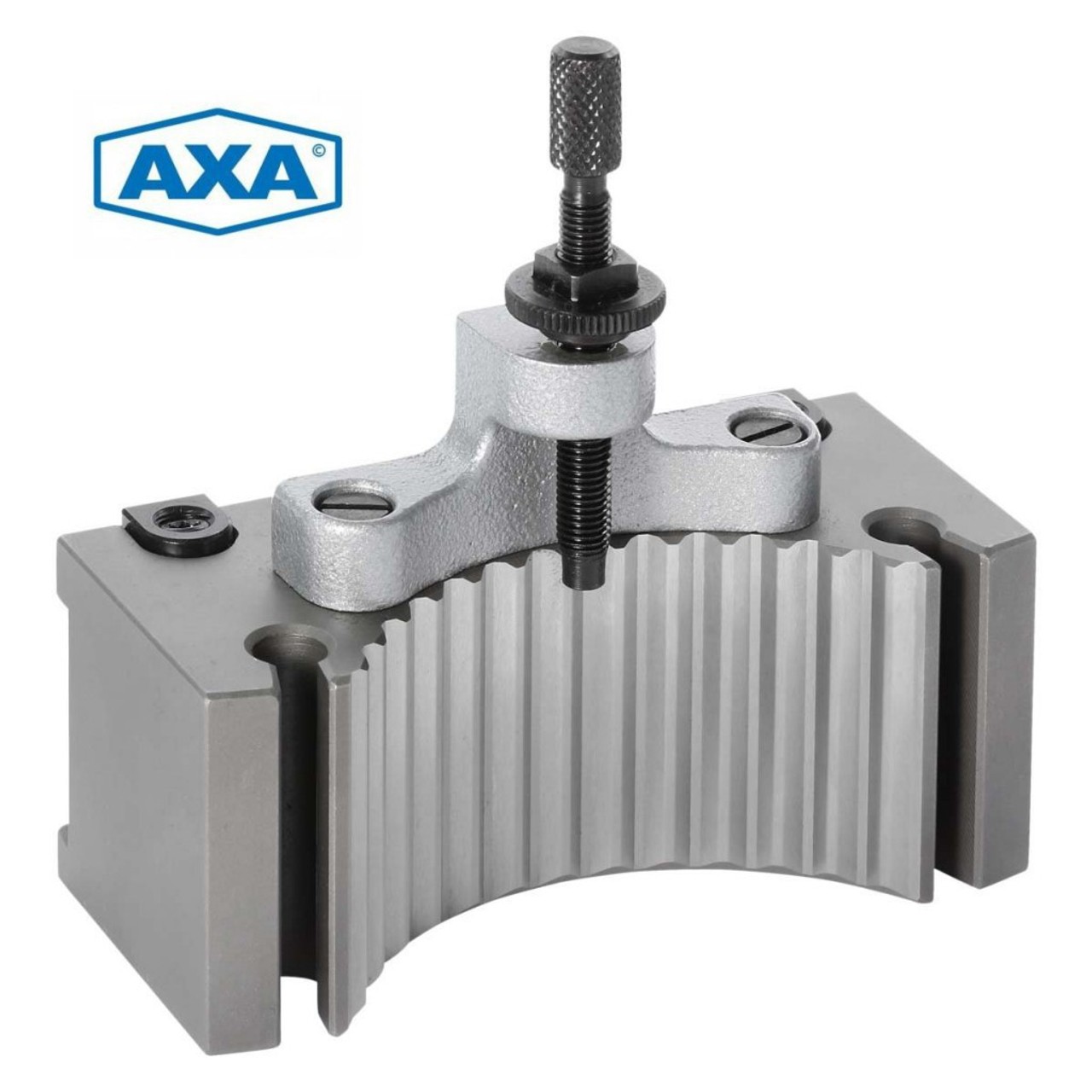

AXA blade holder BSH22/32 (MULTIFIX B) for blade height 32mm / blade thickness max. 4mm / cut-off blade holder / clamp holder
Item number B_BSH22/32
EUR 280.90
*
Content
1 piece
Delivery time approx. 2-3 working days
* Incl. VAT excl. Shipping
AXA blade holder / cut-off blade holder BSH22/32 (MULTIFIX B) for blade height 32mm / blade thickness max. 4mm
- AXA size 22 is identical in construction to Multifix size B
- Length of the holder = 114mm Height of the holder 48mm
- Clamp holder for centreboards 32mm high and max. 4mm thick (thinner ones are clamped) (centreboard not included)
- all sword holders are equipped with 3 separate clamping claws for optimum clamping
- TX 25 clamping spanner for the clamping claws included
- backlash-free and repeatable clamping of the holder in the base body with 0.01 mm repeat accuracy
- Simple height adjustment of the steel holder (and therefore the turning tool) using a knurled screw with lock nut
All technical data for this size can be found under lathe tool holder head K22
| Item ID | 4630 |
| Condition | New |
| Age rating | No age restriction |
| Variation ID | BSH2232 |
| Model | BSH22/32 |
| Manufacturer | AXA Made in Germany |
| Manufacturing country | Germany |
| Content | 1 piece |
| Weight | 2000 g |
| Net weight | 1900 g |
| Dimensions | 150×100×100mm |
