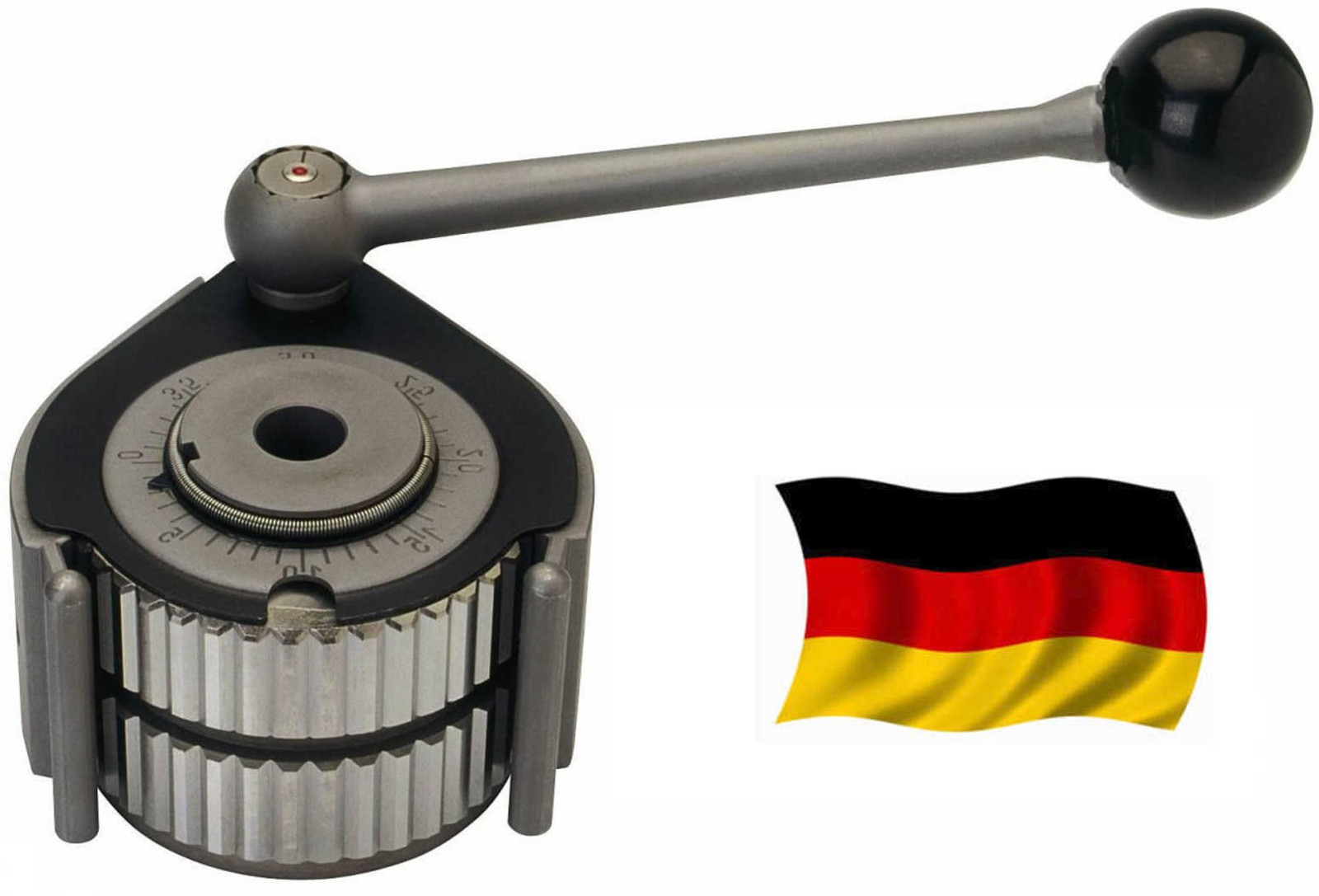

AXA quick-change lathe tool holder head K55 (Multifix D2) Made in Germany
Item number D2_K55
EUR 1,458.95
*
Content
1 piece
Delivery time approx. 2-3 working days
* Incl. VAT excl. Shipping
AXA quick change - steel holder head K55 (= Multifix size D2)
incl. square socket spanner and clamping lever
Size "K55" or "D2" is for machine drive power up to 30 KW
and slide width max. 250mm
Mounting hole of the lathe tool holder head: 80mm (can be enlarged up to max. 90mm)

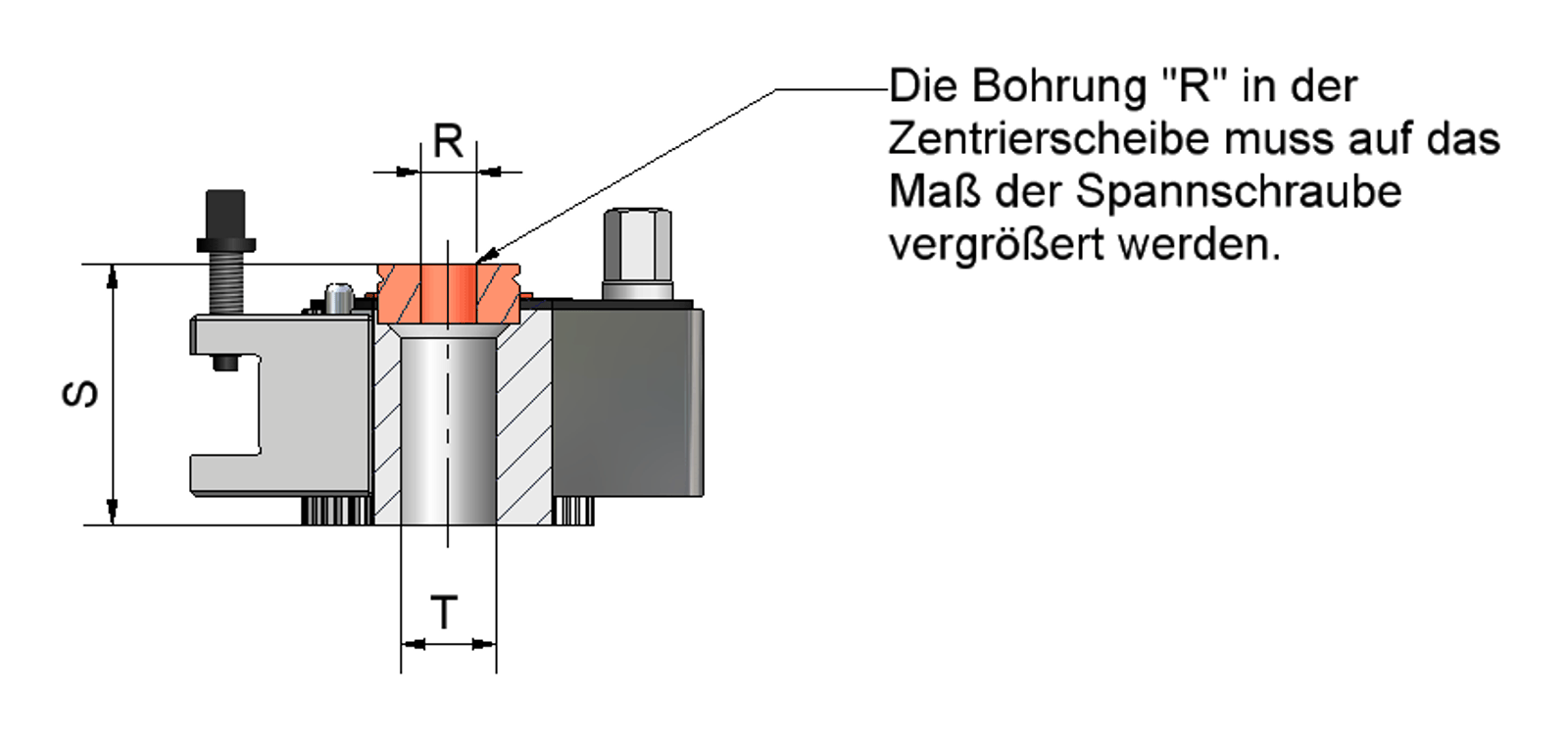

The bore can be easily adapted to the clamping bolt on the lathe.
(if the clamping bolt is larger => enlarge the base body bore / if the clamping bolt is smaller => turn the sleeve)
- lathe tool holder head and steel holder with hardened, profile-ground teeth
- therefore 40 different angle positionsare possible
- Backlash-free and repeatable clamping of the quick-change toolholder
- 0.01 mm repeat accuracy
- Simple height adjustment of the steel holders via knurled screw with lock nut
- with angle scale on the head
- Compatible with almost all standard lathes / lathes

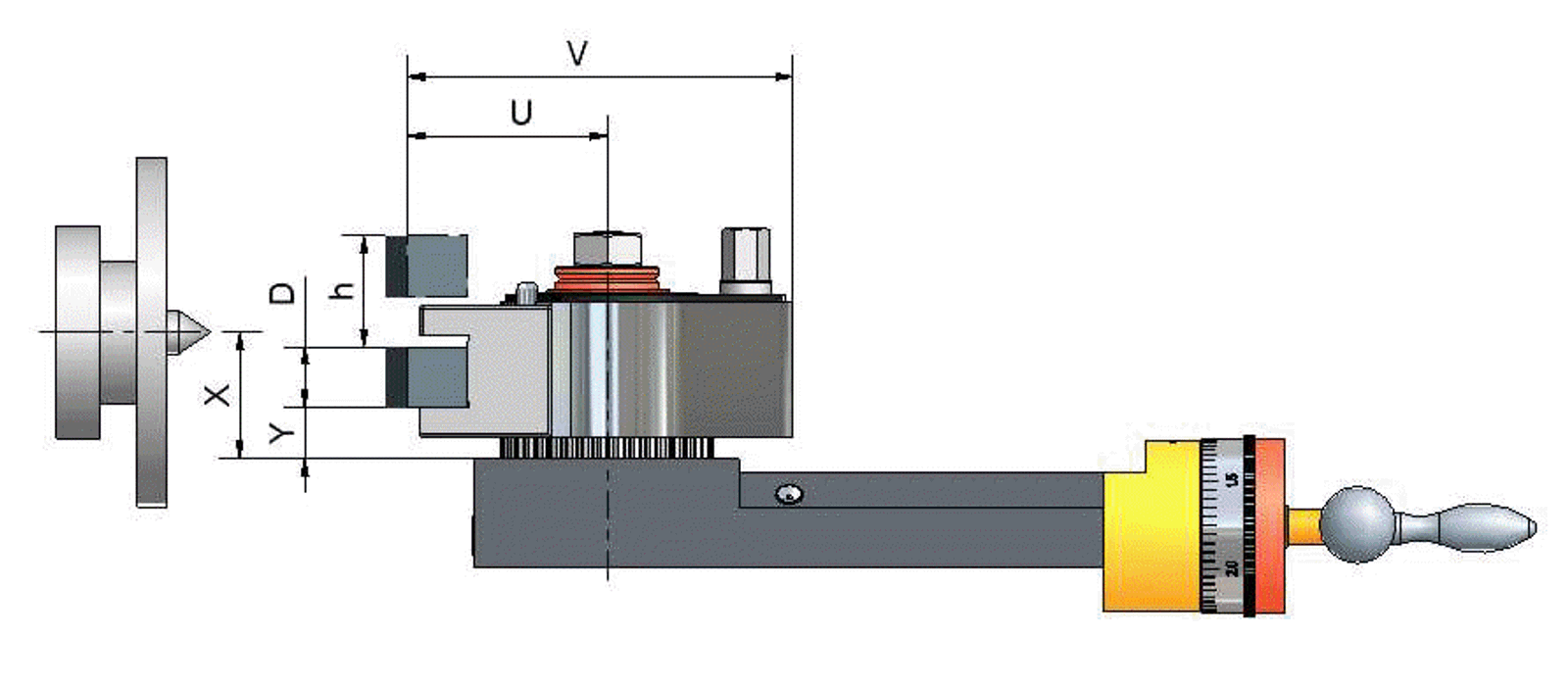

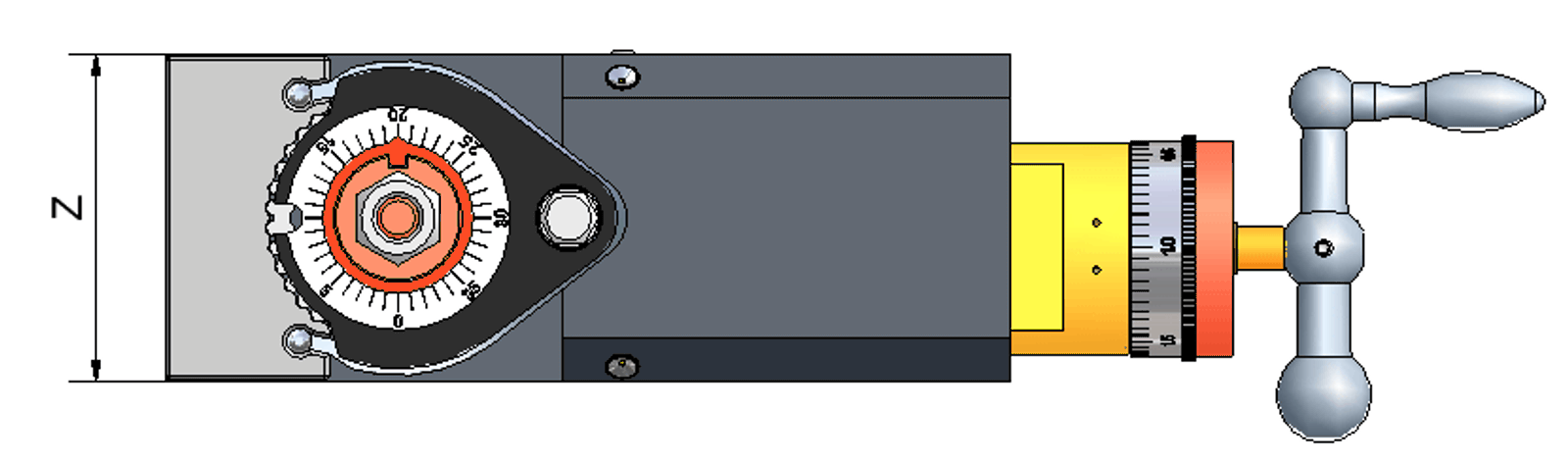

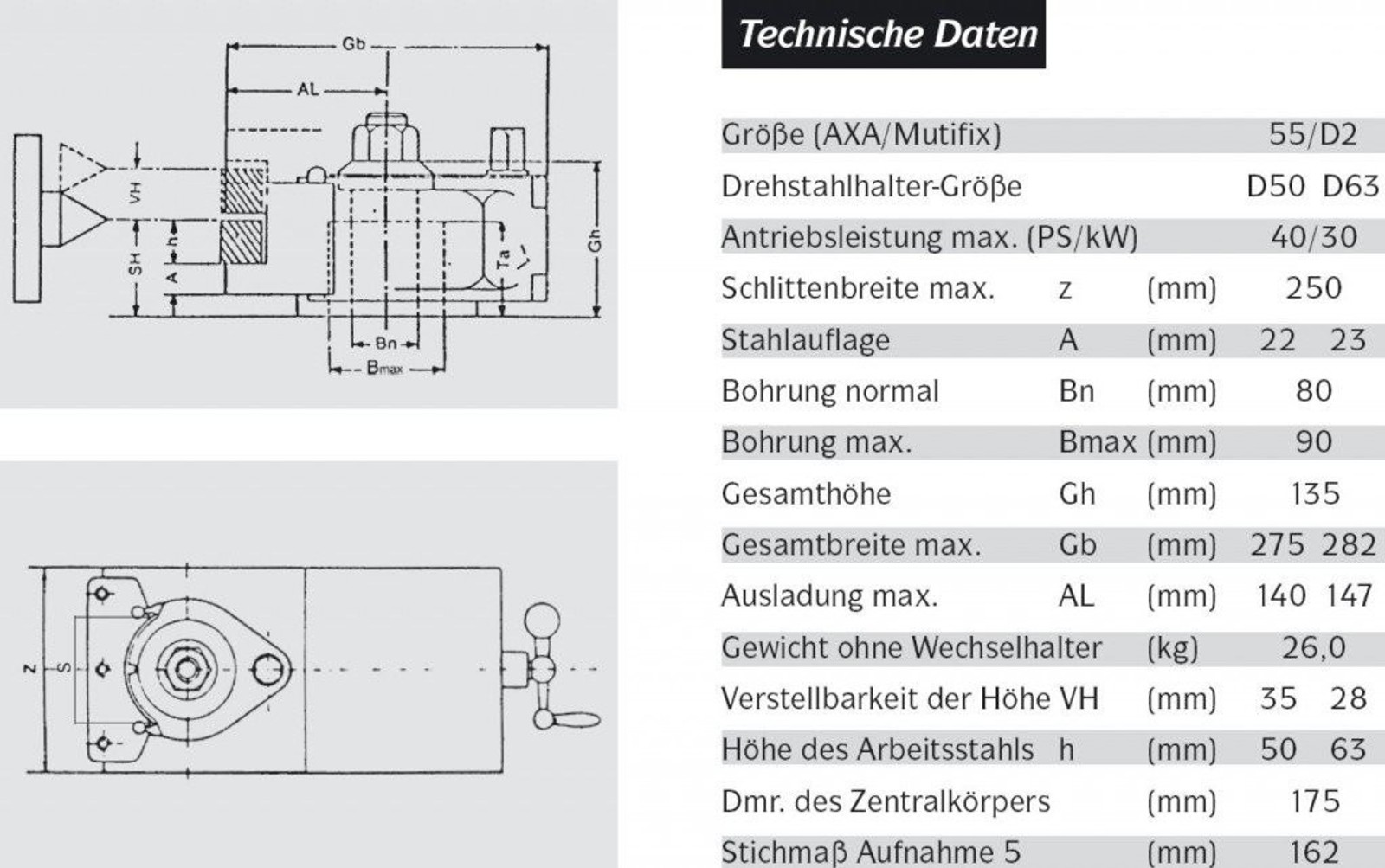

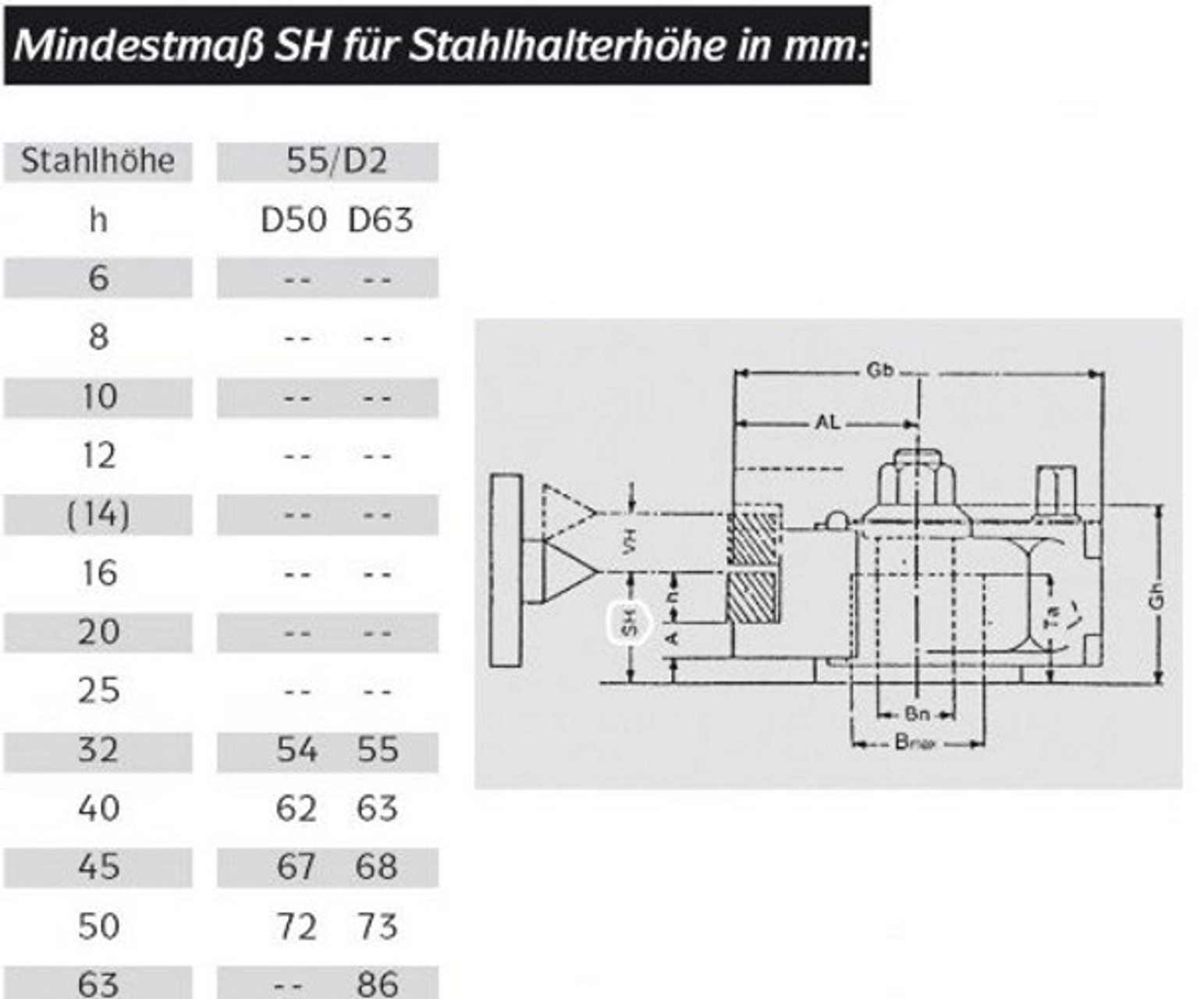

The technical data and dimensions with sketches for explanation can also be found in the photos
| Item ID | 1131 |
| Condition | New |
| Age rating | No age restriction |
| Variation ID | K55 |
| Model | K55 |
| Manufacturer | AXA Made in Germany |
| Manufacturing country | Germany |
| Content | 1 piece |
| Weight | 27000 g |
| Net weight | 26000 g |
| Dimensions | 250×250×200mm |
