AXA Made in Germany

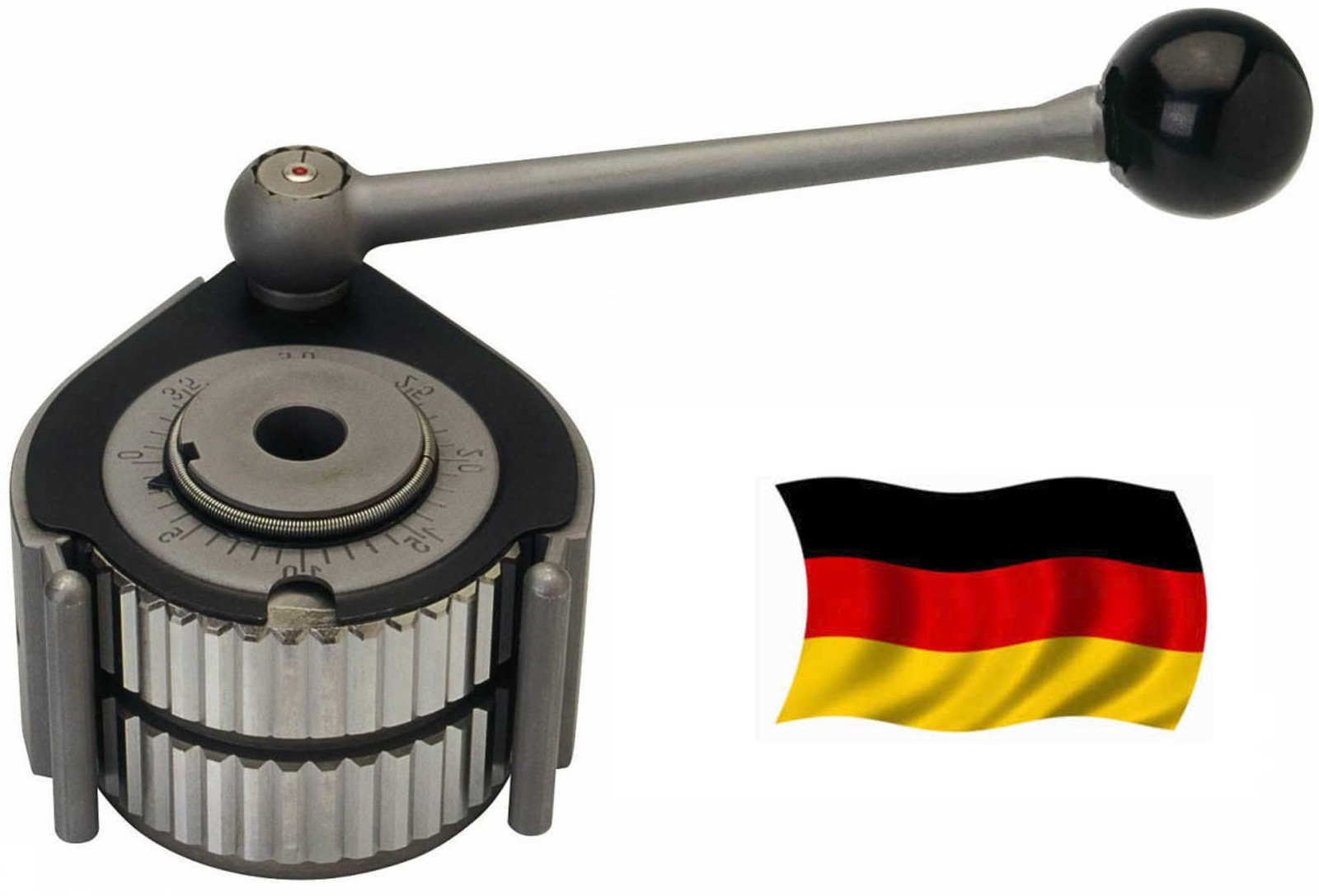

AXA quick-release steel bracket head K11 (Multifix A) Made in Germany


Item number A_K11

EUR 271.95 *
Content 1 piece
Delivery time approx. 2 working days

* Incl. VAT excl. Shipping

AXA quick change - steel holder head K11 (= Multifix size A)

incl. socket spanner and clamping lever

Size "K11" or "A" is for machine drive power up to 2.2 KW
and carriage width max. 100mm

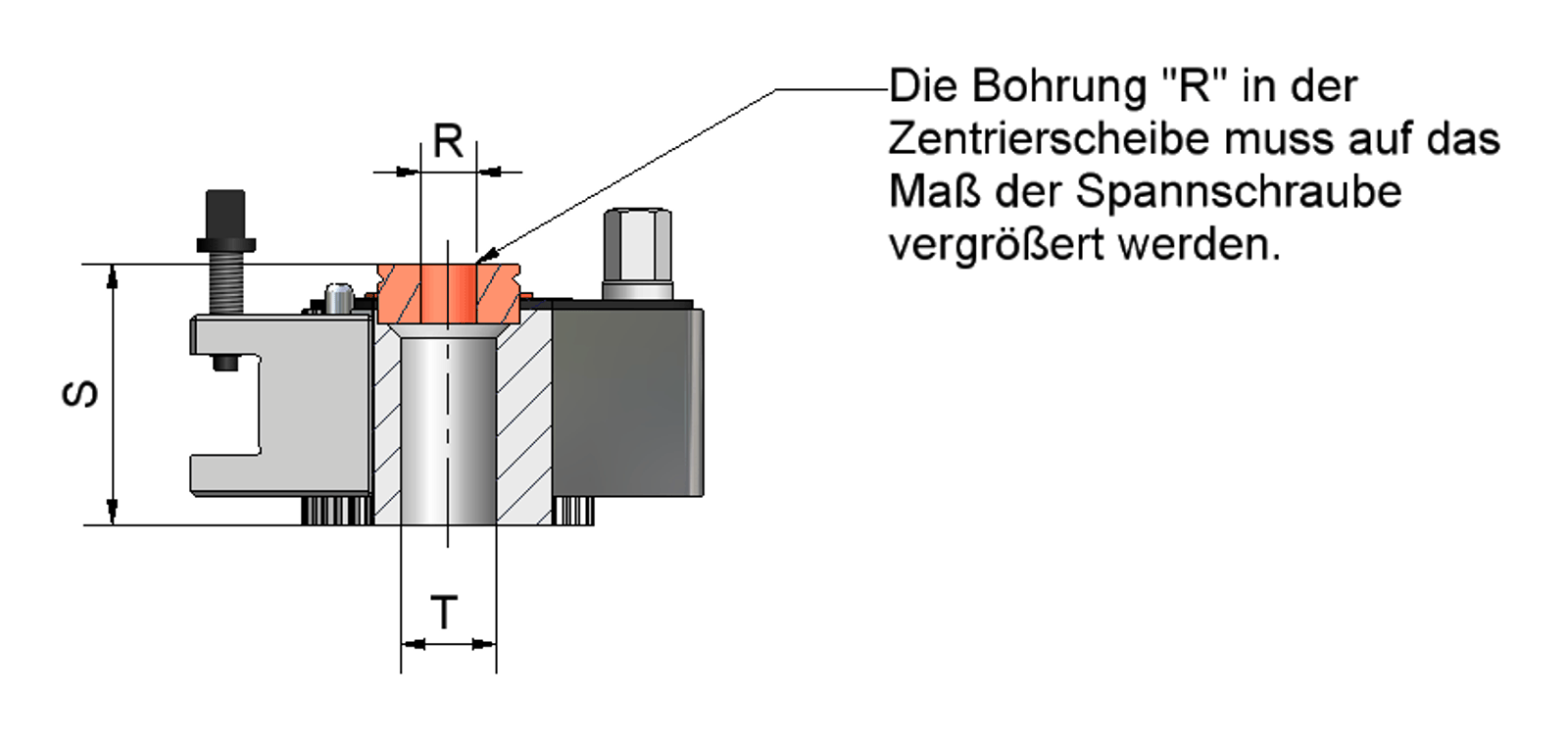

Mounting hole of the steel holder head: 20mm (on request up to 35mm for an extra charge)

  • Steel holder head and steel holder with hardened, profile-ground teeth
  • 40 different angle positionsare therefore possible
  • Backlash-free and repeatable clamping of the interchangeable holders
  • 0.01 mm repeat accuracy
  • Simple height adjustment of the steel holders via knurled screw with lock nut
  • with angle scale on the head
  • Can be fitted toalmost all standard lathes

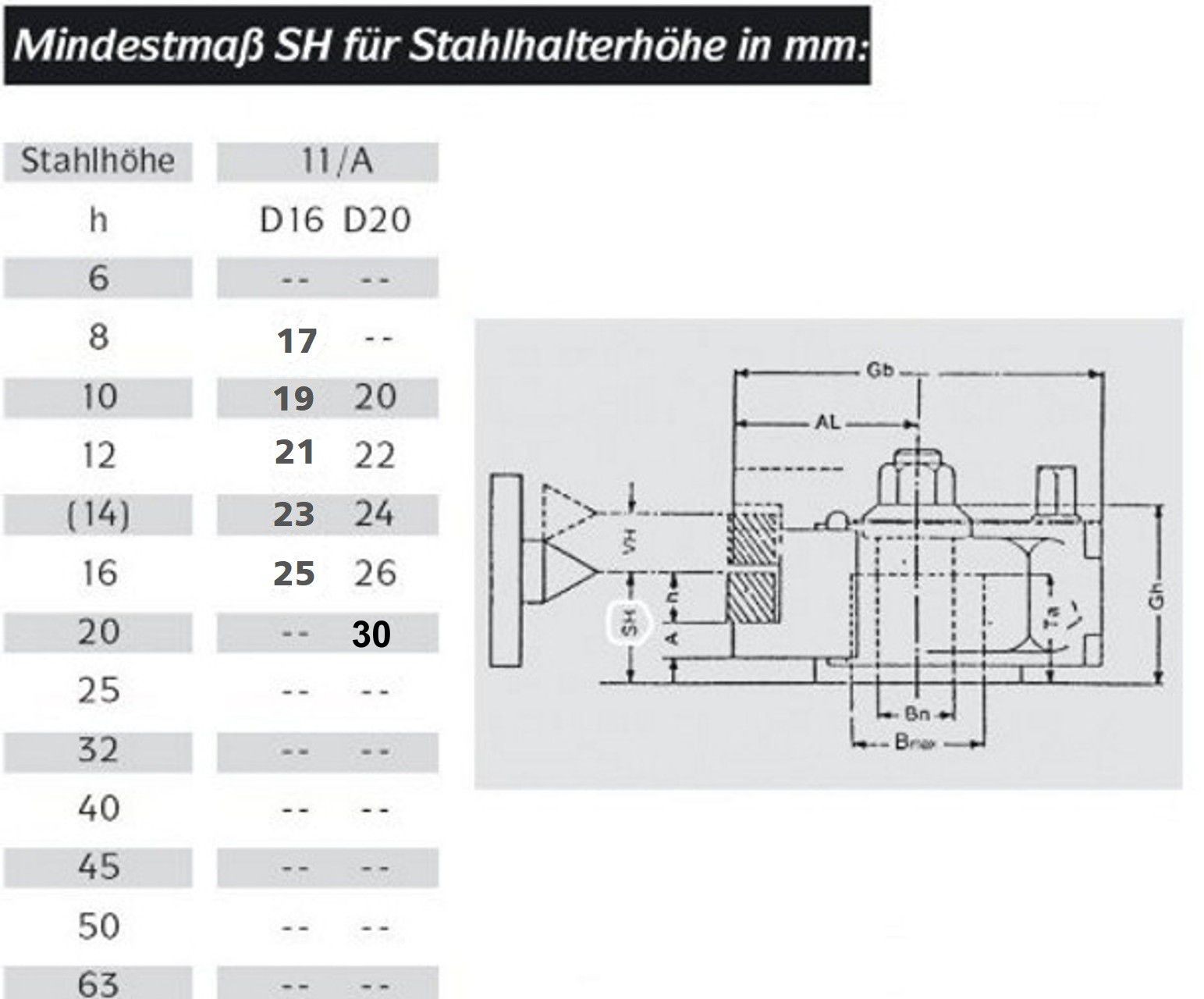

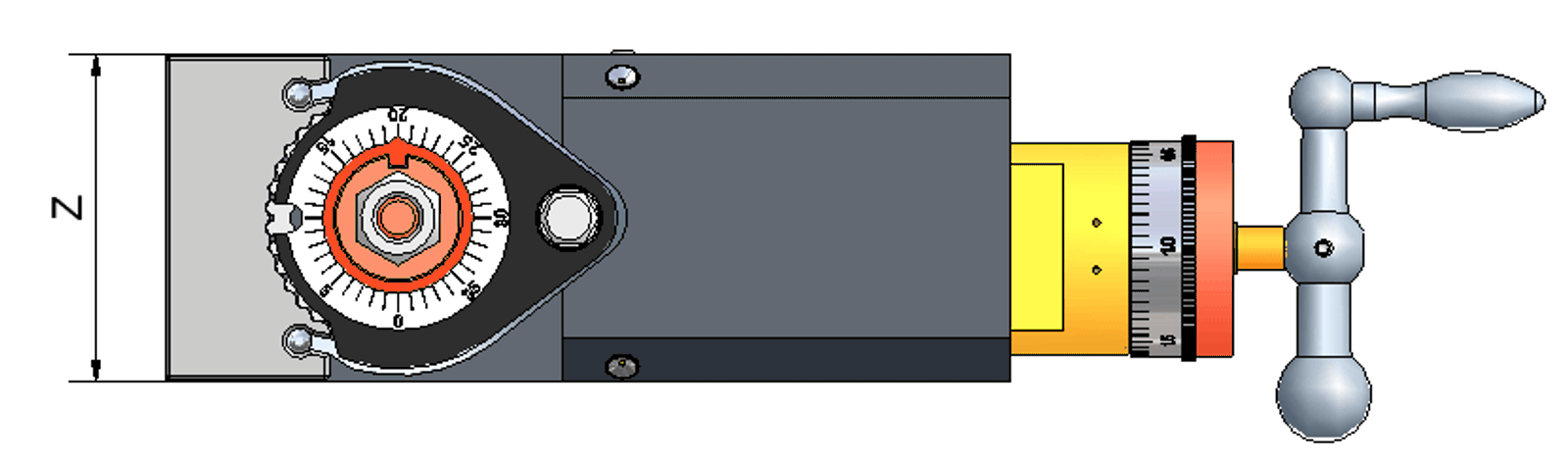

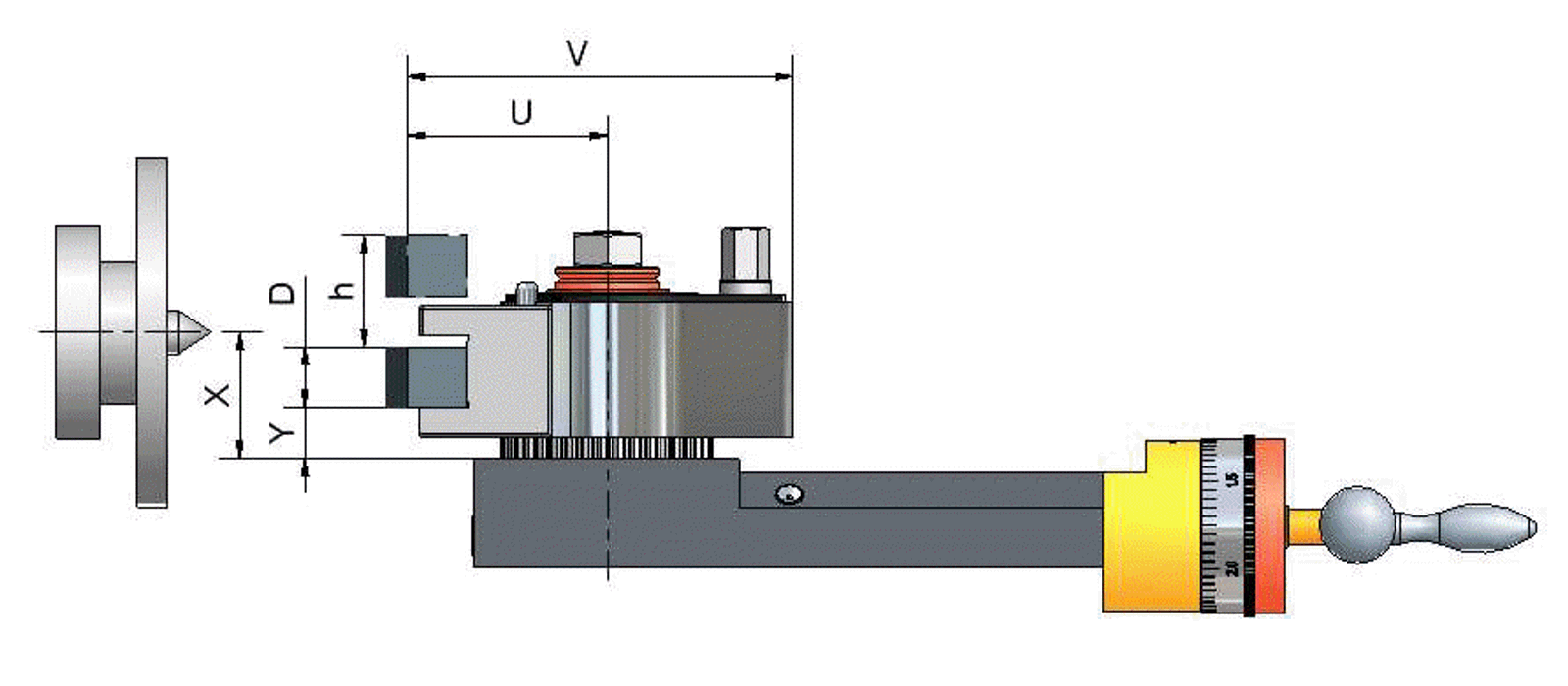

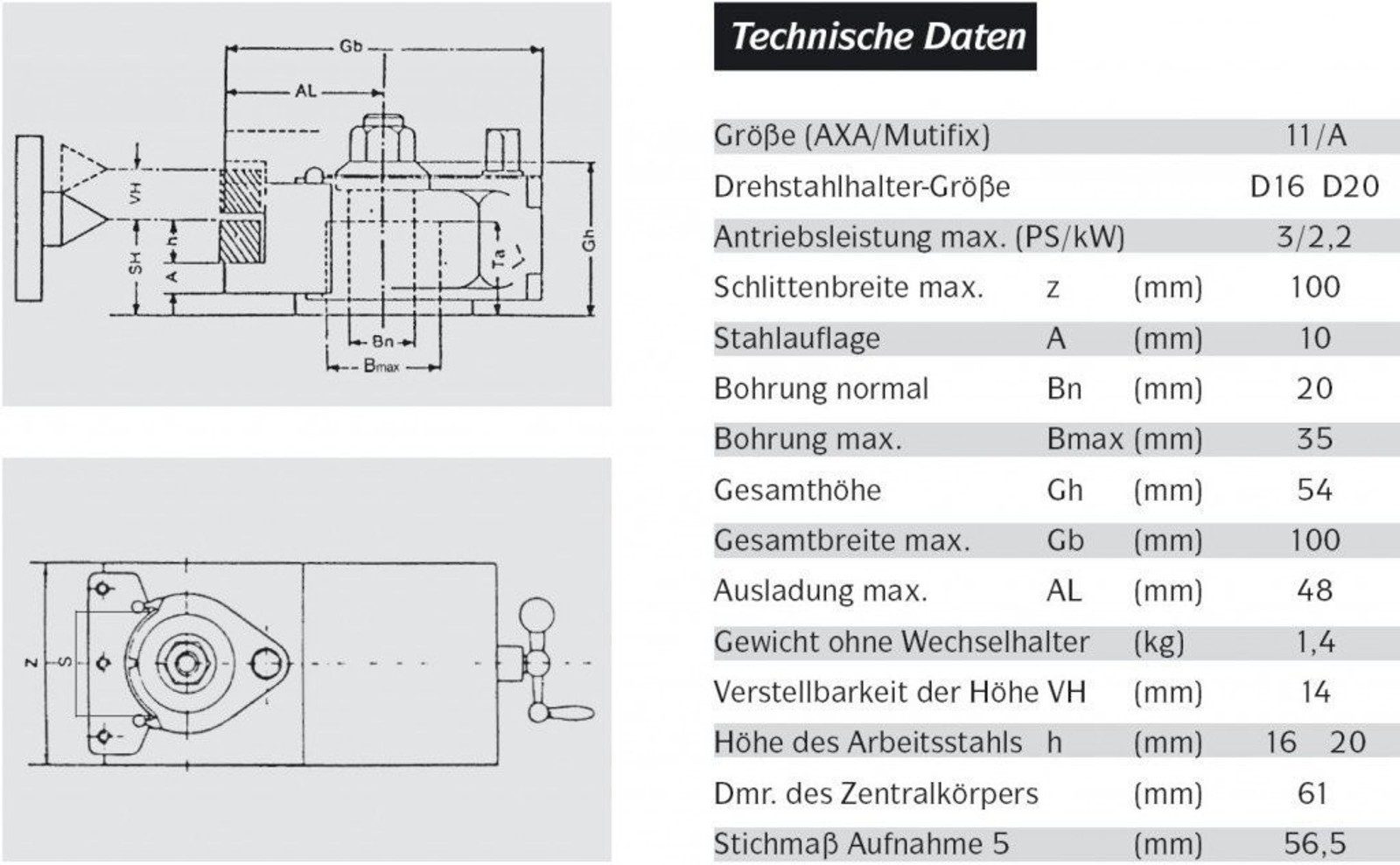

The technical data and dimensions with sketches for explanation can also be found in the photos

Item ID 1126
Condition New
Age rating No age restriction
Variation ID K11
Model K11
Manufacturer AXA Made in Germany
Manufacturing country Germany
Content 1 piece
Weight 1600 g
Net weight 1400 g
Dimensions 48×100×54mm
