AXA Made in Germany

AXA quick-change drilling tool holder B11/20/85 MULTIFIX AH 2085

Item number A_B11/20/85

EUR 84.90 *
Content 1 piece
Delivery time approx. 2-3 working days
* Incl. VAT excl. Shipping

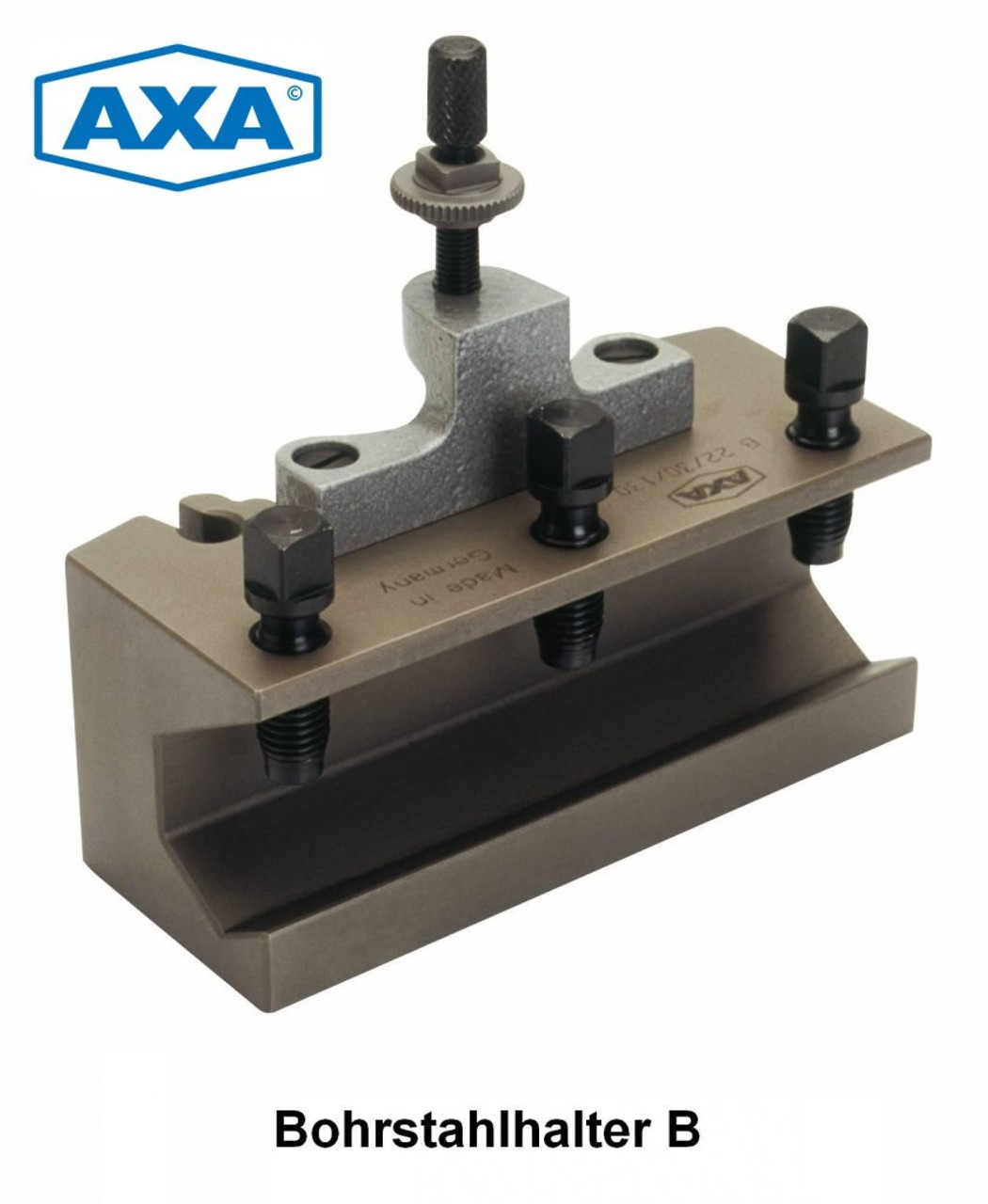

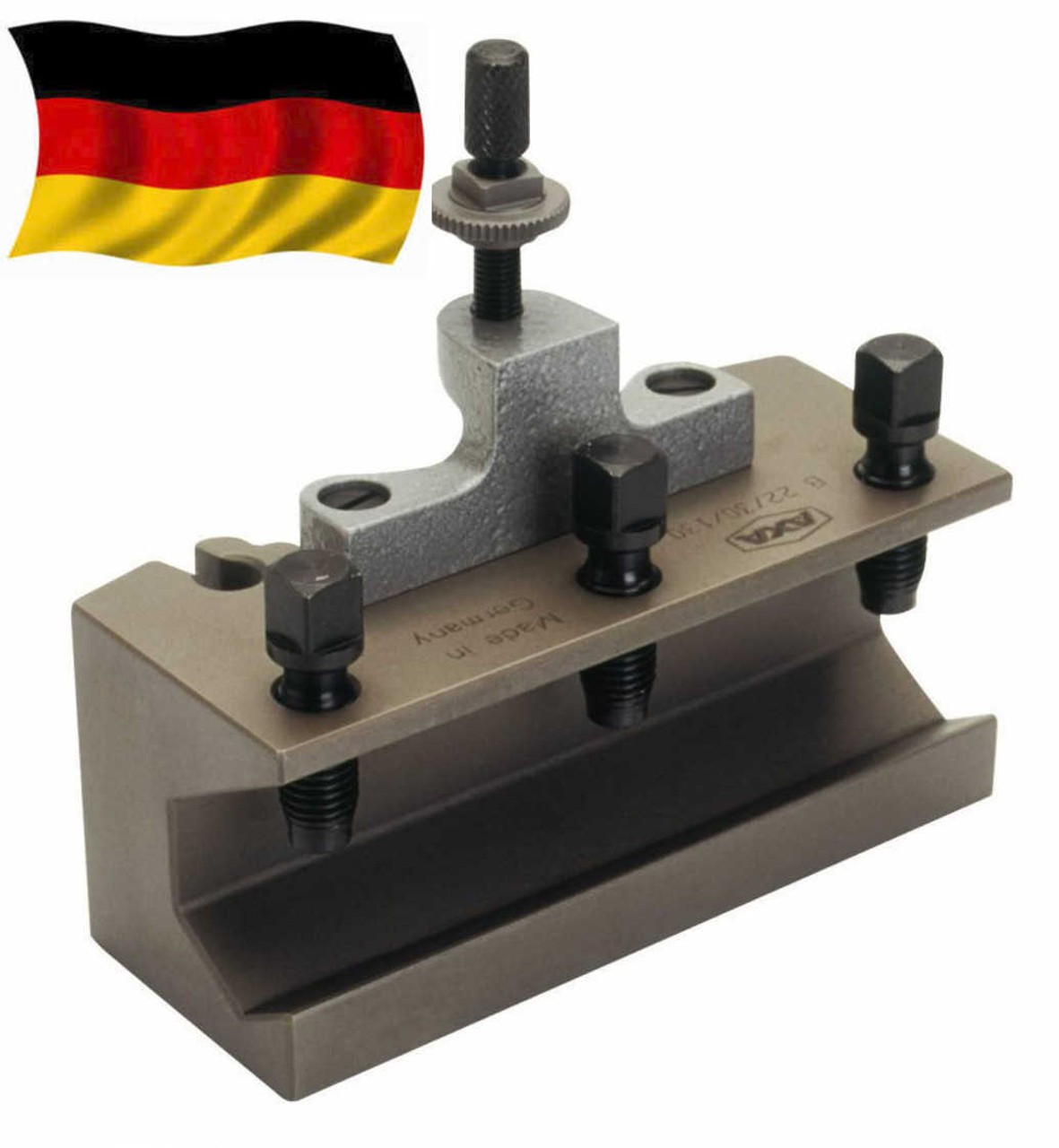

AXA quick-change drilling tool holder B11/20/85 (=MULTIFIX AH 2085) B11 / A

  • Size "A" is for machine drive power up to 2.2 KW and carriage width max. 100mm
  • Length of steel support ( l ) = 85mm
  • max. diameter of the drill steel or drill bit ( d max ) = 20mm
  • Can be used with insert prisms
  • Backlash-free and repeatable clamping of the holder in the base body with 0.01 mm repeat accuracy
  • Simple height adjustment of the steel holder (and thus the turning tool) via a knurled screw with lock nut

For further technical data, see article "lathe tool holder head size A"

Item ID 1153
Condition New
Age rating No age restriction
Variation ID B11/20/85
Model B11/20/85
Manufacturer AXA Made in Germany
Manufacturing country Germany
Content 1 piece
Weight 580 g
Net weight 550 g
Dimensions 85×0×20mm
