AXA Made in Germany

AXA quick-change drilling tool holder B15/30/100 MULTIFIX EH 30100


Item number E_B15/30/100

EUR 130.70 *
Content 1 piece
Delivery time approx. 2-3 working days

* Incl. VAT excl. Shipping

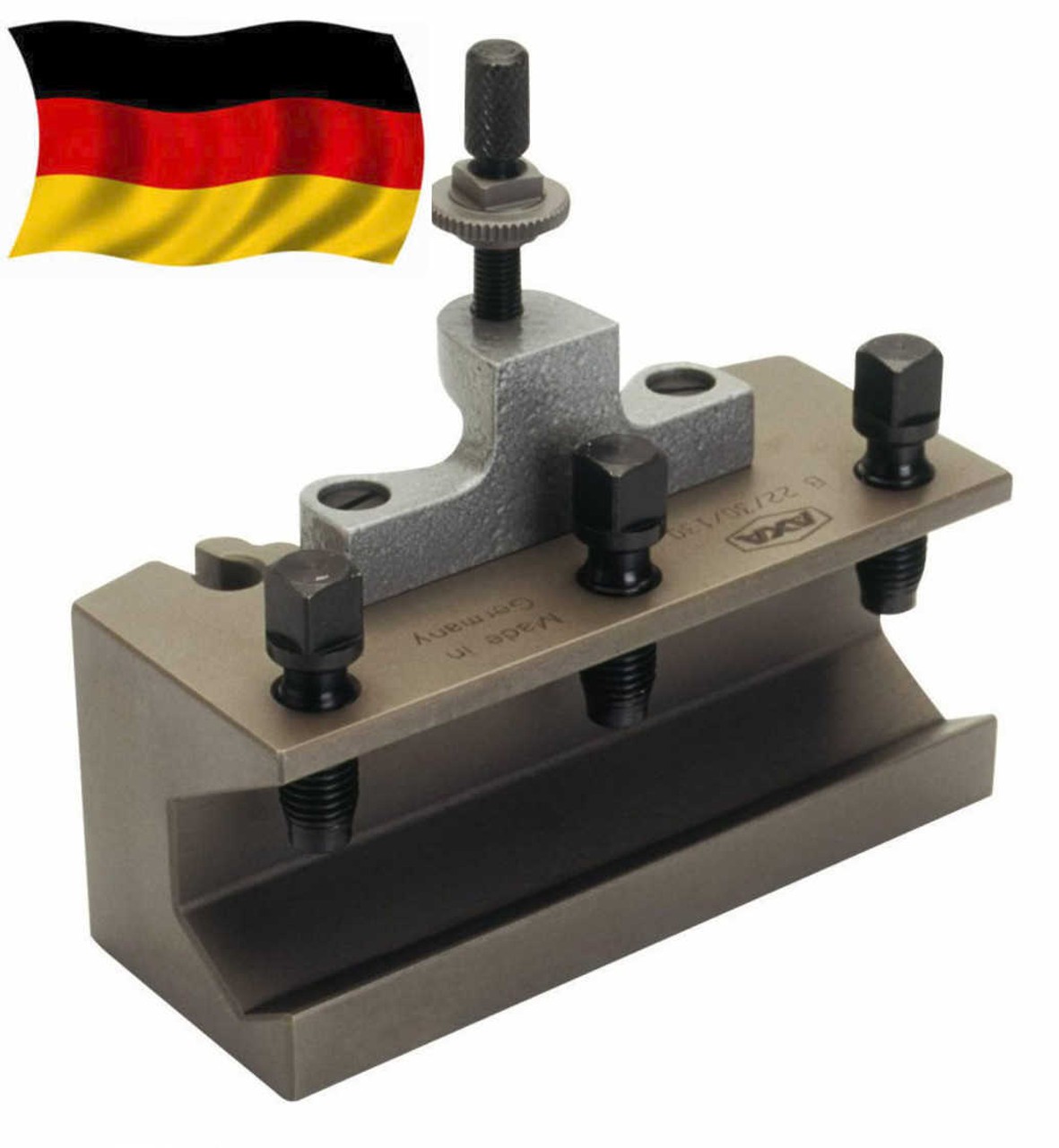

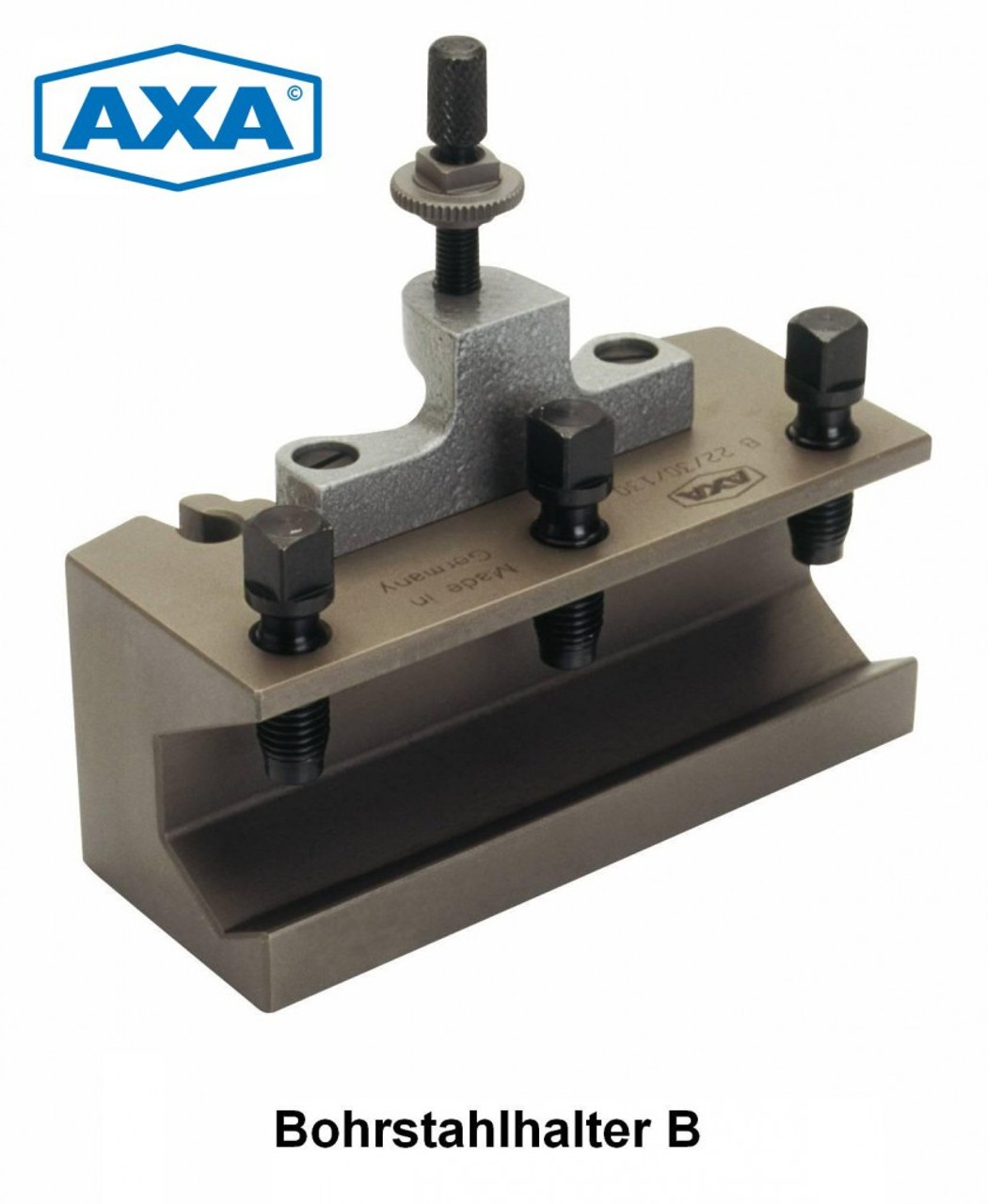

AXA quick-change drill steel holder B15/30/100 (=MULTIFIX EH 30100)

  • Size "E" is for machine drive power up to 5 KW and carriage width max. 120mm
  • Length of steel support ( l ) = 100mm
  • max. diameter of the drill steel or drill bit ( d max ) = 30mm
  • Can be used with insert prisms
  • Backlash-free and repeatable clamping of the holder in the base body with 0.01 mm repeat accuracy
  • Simple height adjustment of the steel holder (and thus the turning tool) via a knurled screw with lock nut

For further technical data, see article "lathe tool holder head size E"

Technical characteristic Value
Item ID 1155
Condition New
Age rating No age restriction
Variation ID B15/30/100
Model B15/30/100
Manufacturer AXA Made in Germany
Manufacturing country Germany
Content 1 piece
Weight 1400 g
Net weight 1300 g
Dimensions 100×50×100mm
